Joinpack Machines Pvt Ltd

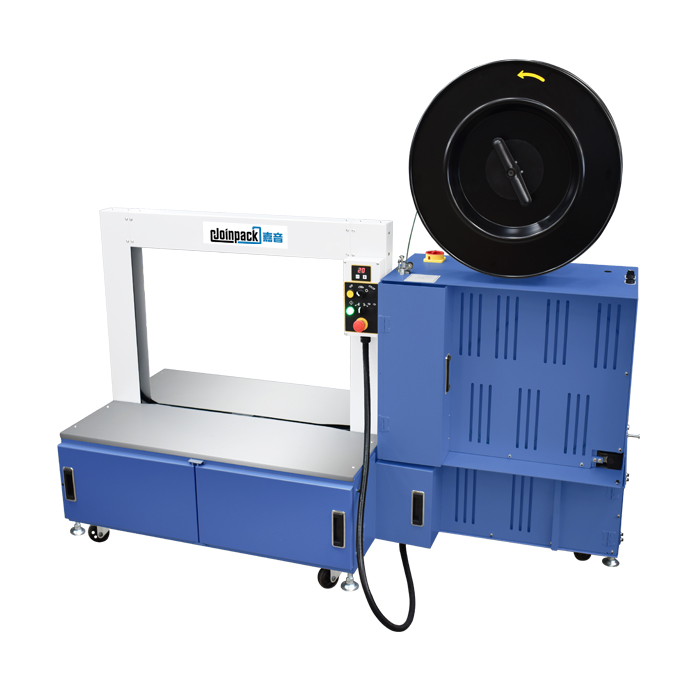

Bottom Seal Strapping With Low Table A-93L

Availability: In Stock

Ideal for heavy, bulky package. Lower table height allows operator to work with heavy objects efficiently. Various arch size combination and workability of different strapwidths between 9 ~ 15 mm. Tension range between 15-70 KGs. Available to equip with various unique options to perform advanced functions.

Ask about product
Description

Description

Overview

Ideal for heavy, bulky package. Lower table height allows operator to work with heavy objects efficiently. Various arch size combination and workability of different strapwidths between 9 ~ 15 mm. Tension range between 15-70 KGs. Available to equip with various unique options to perform advanced functions.

Features

  • 8 digit counter
  • Proximity cam switch
  • Instant heating system
  • Weld cooling time adjustable
  • Digital regulator in PCB which LED shows I/O status
Specification

Specification

Speed (straps / min) 24
Strap Width (mm) 9,12,15 specified
Tension Range 15~70kgs
Standard Arch (W x H mm) 850 x 600
Motor AC
Sealing Method Heating element
Table Height (mm) 440
Power Supply 110/220/230/240V, 50/60Hz,1PH 220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw) 1.0
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) 1925 x 705 x 1480 (50%,100%,150%,200%)

*Specification subject to change without notice

Options
  • Looping ejector
  • Auto loading system
